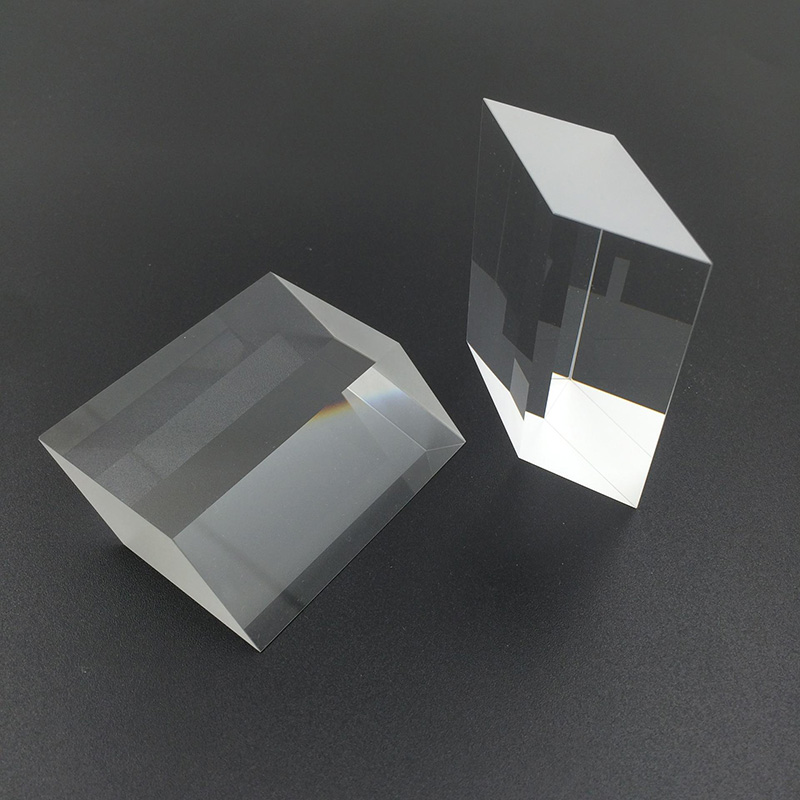

Rhomboid Prism
Rhomboid prism is used to displace the incident beam without affecting the image orientation. This prism can be used to displace the optical center line and the displacement is equal to the length of the prism. Rhomboid prisms are available uncoated.
Product Code:GA-RP
Specification
| Material | N-BK7or N-SF11 |
| Dimensional Tolerance | ± 0.05mm |
| Flatness | λ/4 @ 632.8nm |
| Surface Quality | 40 ~ 20 |
| Clear Aperture | 90% |
| Parallelism | < 30 arc seconds |
| AR coating | Specified by customer |
