Dichroic Mirror

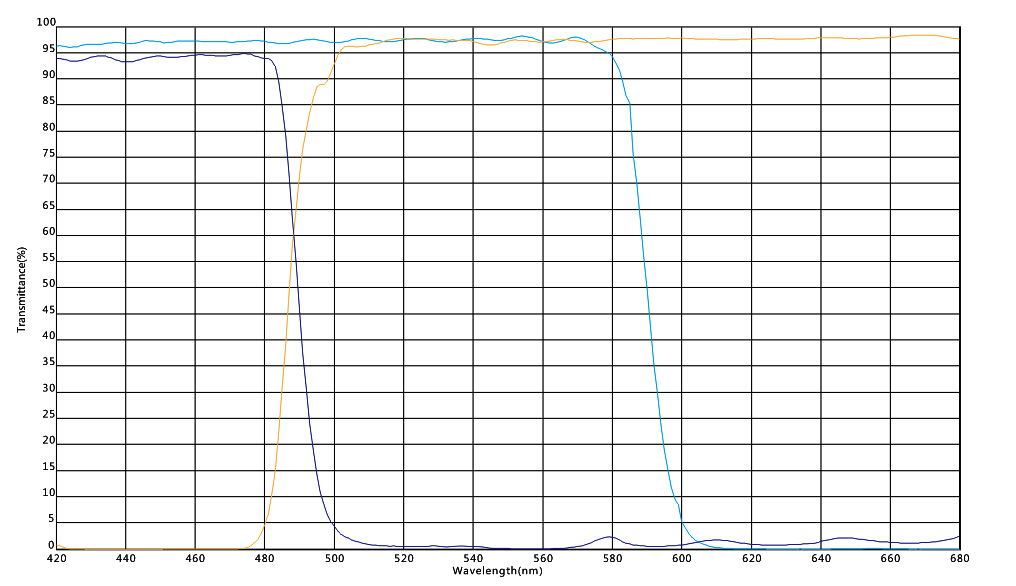

Dichroic mirrors, also called dichroic mirrors, are often used in laser technology. Its characteristic is that the light of a certain wavelength is almost completely transmitted, while the light of other wavelengths is almost completely reflected.
Product Code:GA-DM
Specification
| Process method | IAD multilayer dielectric hard film |
| S1 surface | Ar film 420-680nm@R<1% |
| S2 surface | two-way spectroscopic film |
| Average transmittance of working band | T>95% |
| Average reflectance of working band | R>95% |
| Size range | 2*2mm~146*146mm, Φ3mm~Φ110mm |
| Product thickness | 0.3-5.0mm |
| Clear aperture | coating coverage is greater than 95% effective area |
| Surface finish | national standard level three, US military standard 40-20 (scratches/pitting) |
| Environmental testing | MIL-STD-810F |
