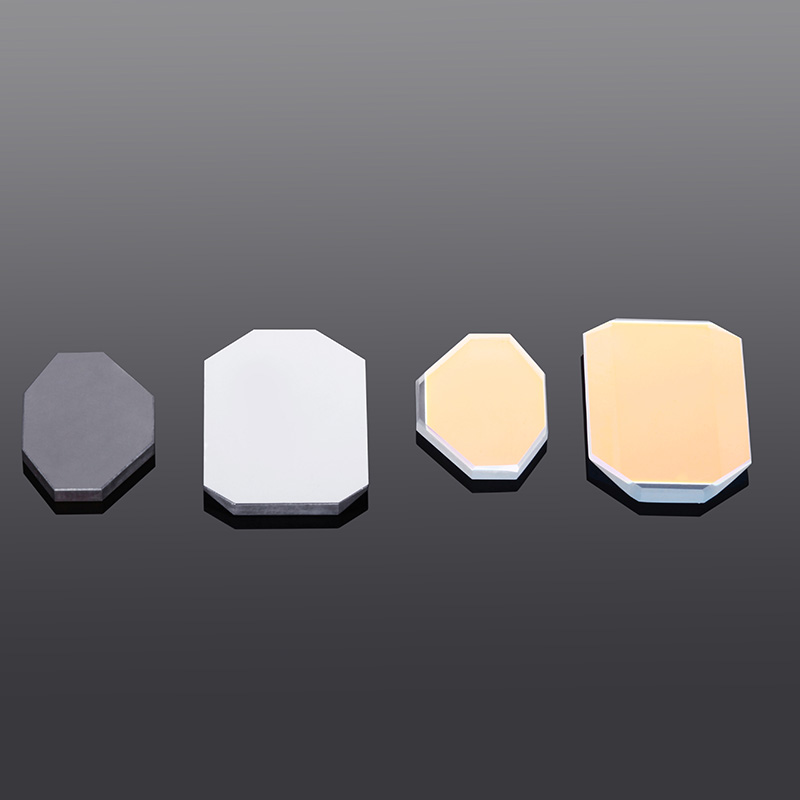

Laser Galvanometer
The working principle of the laser galvanometer is that the laser beam is incident on two mirrors (scanning mirrors), and the reflection angle of the mirrors is controlled by a computer. The two mirrors can scan along the X and Y axes respectively, so as to achieve the deflection of the laser beam. , is that the laser focusing point with a certain power density moves according to the required requirements in the line of the qualified material, leaving a permanent mark on the surface of the material.
Scanning laser systems rely on galvanometers to precisely position the laser beam.
Product Code:GA-LG
Application:
Our galvo mirrors are suitable for YAG lasers and CO2 lasers and can be used in various industrial applications such as: laser marking, laser drilling, laser welding.
Our advantage:
1. With mirror grade silicon/K9/quartz substrate
2. Thermal stability is better than that of molten silicon substrate
3. Has a geometry that meets OEM specifications
4. With high reflection coating, suitable for YAG galvanometer/CO2 galvanometer/1064 galvanometer and UV galvanometer.
Regular Models
| Model | Incident spot diameter | Wavelength (nm) | Type | Incidence angle | Coating | Reflectivity |
| GiAi-AOI-10-1064 | 10 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-1064 | 12 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-1064 | 14 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-1064 | 16 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-1064 | 20 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-1064 | 30 | 1064 | 1064 laser | 45°±15 | HR@1064nm | R>99%@1064nm |
| GiAi-AOI-10-532 | 10 | 532 | 532 laser | 45°±15 | HR@532nm | R>99%@532nm |
| GiAi-AOI-12-355 | 12 | 355 | 355 laser | 45°±15 | HR@355nm | R>99%@355nm |
| GiAi-AOI-12-10600 | 10 | 10600 | CO2 laser | 45°±15 | HR@10600nm | R>99%@10600nm |
