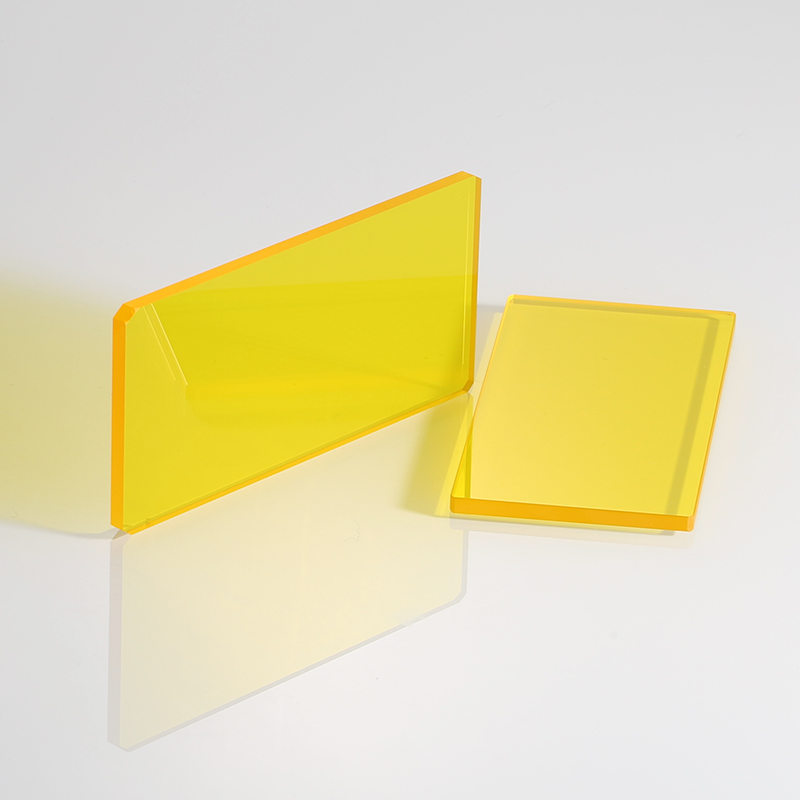

IPL Colour Glass Filter
IPL (intense pulsed light) colour glass filters (red, yellow, orange, and deep red) are used to block UV wavelengths and transmit a cut on wavelength for a particular treatment application. There are various choices of wavelengths to suit different applications ranging from 400nm to 1200nm. They are used in IPL systems supplied to many industry manufactures.
Product Code:GA-IPL
Specification
| Process method |
IAD multilayer dielectric hard film |

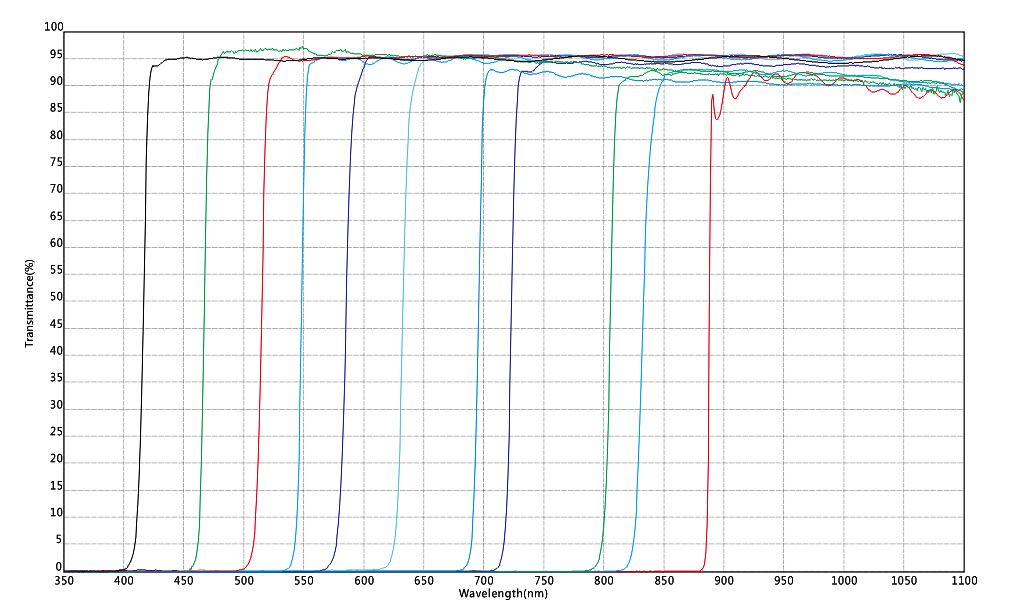

| Peak transmittance | T>94% |
| Cut-off depth | OD2-OD4 |
| Cut-off transition band | <20nm |
| Working band | 200-1100nm |
| Product material | B270, D263T, quartz glass, sapphire |
| Round size range | Ø3mm~Ø110mm |
| Square size range | 2*2mm~146*146mm |
| Product thickness | 0.3-5.0mm |
| Clear aperture | coating coverage is greater than 95% effective area |
| Surface finish | US military standard 40-20 (scratches/pits) |
| Environmental test | MIL-STD-810F |
IPL (intense pulsed light) colour glass filters (red, yellow, orange, and deep red) are used to block UV wavelengths and transmit a cut on wavelength for a particular treatment application. There are various choices of wavelengths to suit different applications ranging from 400nm to 1200nm. They are used in IPL systems supplied to many industry manufactures.
